SK7012

Adjustable handles

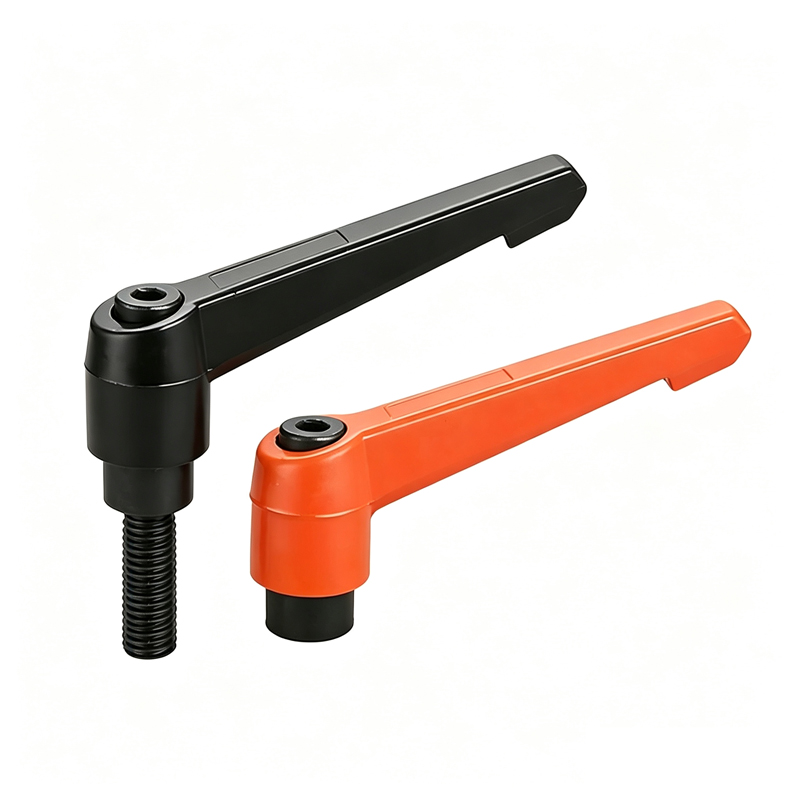

Material: Zinc alloy handle body, Black oxide treatment steel sliding sleeve and screw, The sliding sleeve can be customized in nonstandard sizes, Handle body color B=Black O=Orange
Example for order: 7012320B

Material: Zinc alloy handle body, Black oxide treatment steel sliding sleeve and screw

The sliding sleeve can be customized in nonstandard sizes

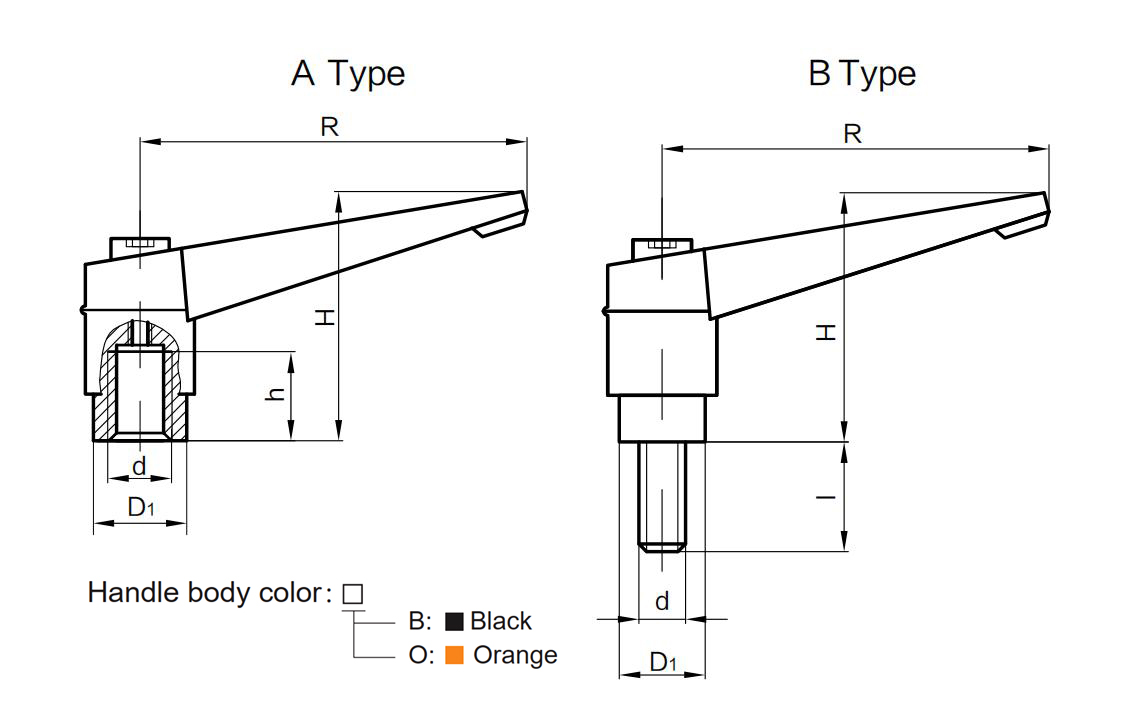

SK7012 Adjustable handles(pic1)

Code	Description	R	d	l	h	H	D1
7012320□	50×AM5	50	M5		9	35	Ф9.8
7012321□	50×M5×16	50	M5	16		35	Ф9.8
7012322□	50×M5×20	50	M5	20		35	Ф9.8
7012323□	50×M5×25	50	M5	25		35	Ф9.8
7012330□	50×AM6	50	M6		9	35	Ф9.8
7012331□	50×M6×16	50	M6	16		35	Ф9.8
7012332□	50×M6×20	50	M6	20		35	Ф9.8
7012333□	50×M6×25	50	M6	25		35	Ф9.8
7012440□	63×AM8	63	M8		12	44	Ф12.9
7012442□	63×M8×20	63	M8	20		44	Ф12.9
7012443□	63×M8×25	63	M8	25		44	Ф12.9
7012444□	63×M8×32	63	M8	32		44	Ф12.9
7012446□	63×M8×40	63	M8	40		44	Ф12.9
7012447□	63×M8×50	63	M8	50		44	Ф12.9
7012550□	80×AM10	80	M10		15	54	Ф16.1
7012552□	80×M10×20	80	M10	20		54	Ф16.1
7012553□	80×M10×25	80	M10	25		54	Ф16.1
7012554□	80×M10×32	80	M10	32		54	Ф16.1
7012556□	80×M10×40	80	M10	40		54	Ф16.1
7012557□	80×M10×50	80	M10	50		54	Ф16.1
7012660□	95×AM12	95	M12		17	61	Ф19.2
7012663□	95×M12×25	95	M12	25		61	Ф19.2
7012664□	95×M12×32	95	M12	32		61	Ф19.2
7012666□	95×M12×40	95	M12	40		61	Ф19.2
7012667□	95×M12×50	95	M12	50		61	Ф19.2
7012668□	95×M12×63	95	M12	63		61	Ф19.2
7012880□	114×AM16	114	M16		20	69	Ф22.3
7012886□	114×M16×40	114	M16	40		69	Ф22.3
7012887□	114×M16×50	114	M16	50		69	Ф22.3
7012888□	114×M16×63	114	M16	63		69	Ф22.3
