SK7015

Adjustable handles

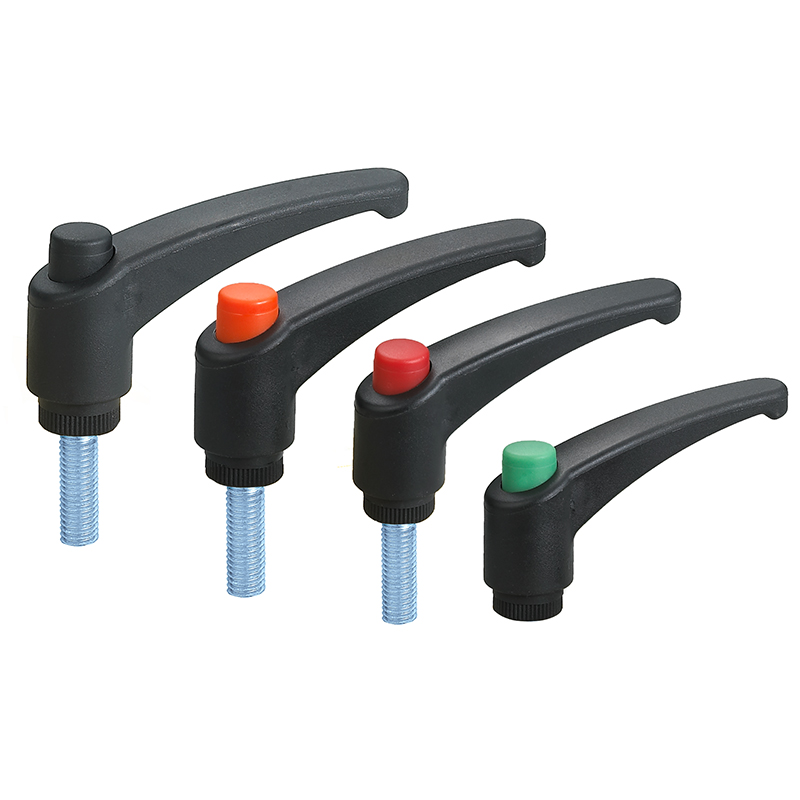

Polyamide, black color, matte finish. Lever body can be customized in different colors. Push button Black, orange, red, green 4 colors, glossy finish. Thread part White galvanized steel bolt thread or "T" brass nut, also can be customized stainless steel. Features and applications Particularly suitable when the available space and operating mode make it preferable to use a flat lever instead of an inclined lever.

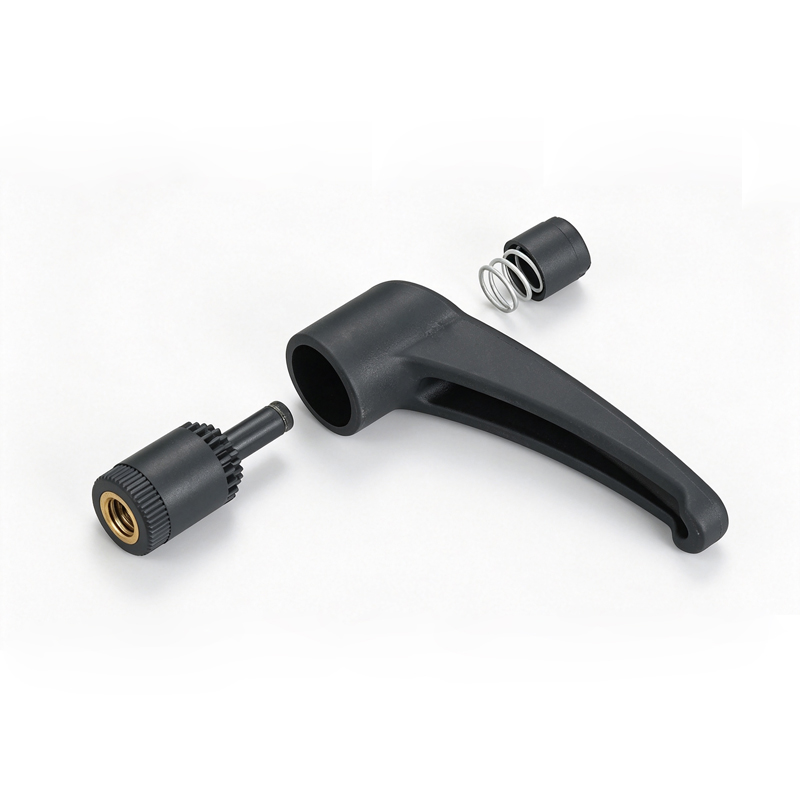

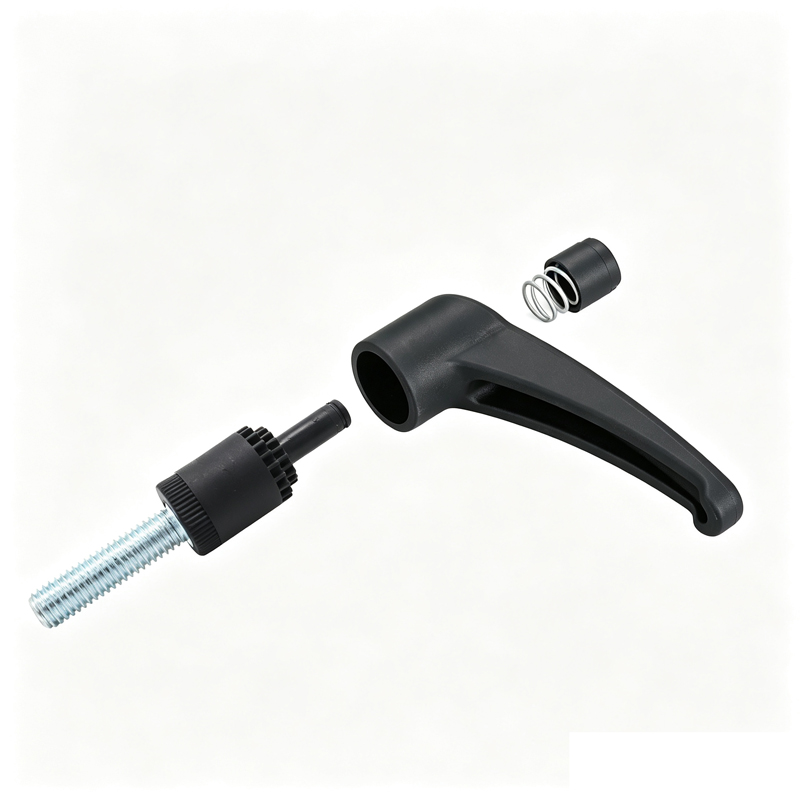

SK7015 Adjustable handles(pic1)

Code	Description	R	d	l	h	H	D1
7015T320□	45×AM5	45	M5		9	34	Ф11.5
7015321□	45×M5×15	45	M5	15		34	Ф11.5
7015322□	45×M5×20	45	M5	20		34	Ф11.5
7015323□	45×M5×25	45	M5	25		34	Ф11.5
7015324□	45×M5×30	45	M5	30		34	Ф11.5
7015T330□	45×AM6	45	M6		9	34	Ф11.5
7015331□	45×M6×15	45	M6	15		34	Ф11.5
7015332□	45×M6×20	45	M6	20		34	Ф11.5
7015333□	45×M6×25	45	M6	25		34	Ф11.5
7015334□	45×M6×30	45	M6	30		34	Ф11.5
7015T440□	65×AM8	65	M8		13	46	Ф15.5
7015442□	65×M8×20	65	M8	20		46	Ф15.5
7015443□	65×M8×25	65	M8	25		46	Ф15.5
7015444□	65×M8×30	65	M8	30		46	Ф15.5
7015446□	65×M8×40	65	M8	40		46	Ф15.5
7015447□	65×M8×50	65	M8	50		46	Ф15.5
7015T550□	80×AM10	80	M10		17	55	Ф18.5
7015552□	80×M10×20	80	M10	20		55	Ф18.5
7015553□	80×M10×25	80	M10	25		55	Ф18.5
7015554□	80×M10×30	80	M10	30		55	Ф18.5
7015556□	80×M10×40	80	M10	40		55	Ф18.5
7015557□	80×M10×50	80	M10	50		55	Ф18.5
7015T660□	95×AM12	95	M12		22	64	Ф21.5
7015663□	95×M12×25	95	M12	25		64	Ф21.5
7015664□	95×M12×30	95	M12	30		64	Ф21.5
7015666□	95×M12×40	95	M12	40		64	Ф21.5
7015667□	95×M12×50	95	M12	50		64	Ф21.5
7015668□	95×M12×60	95	M12	60		64	Ф21.5
