Position gauge used with handwheel, which is used in counting or indication the movement of instrument. When handwheel is fixed to horizontal spindle, the gauge indicates different positions of spindle. Special designs of dial scale available on request.

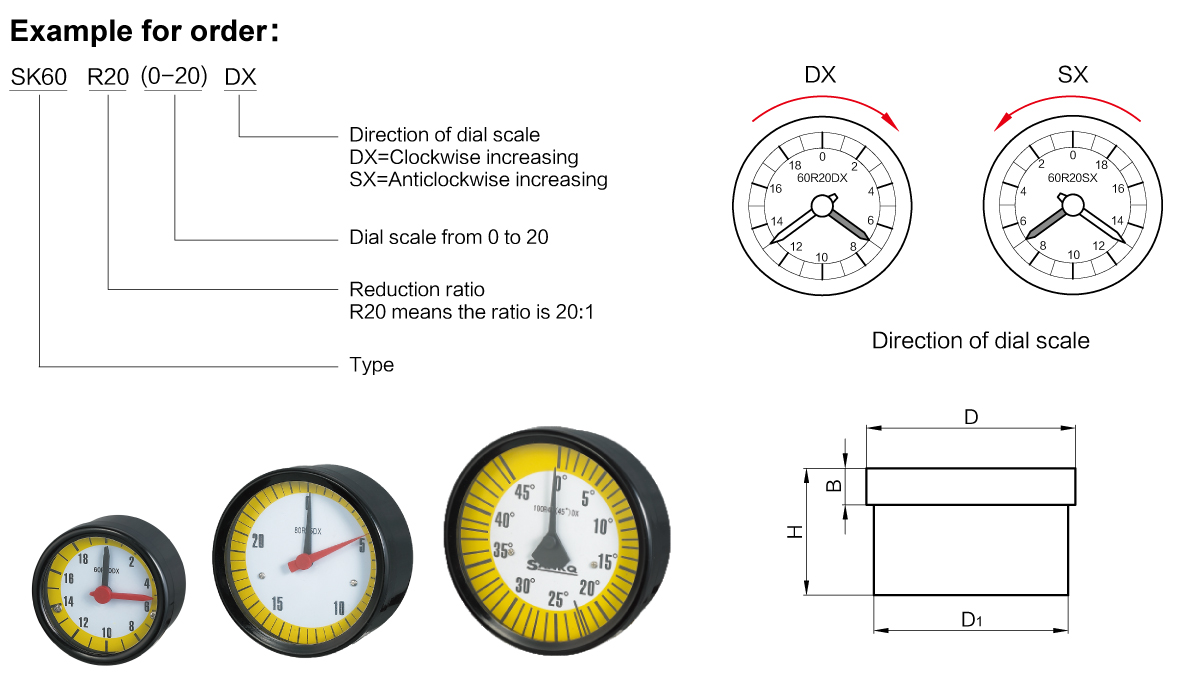

SK60 80 100 Position gauges(pic1)

Code	Description	D	D1	H	B	Ratio	Dial scale(norm)
SK60 R □□□□	SK60	57.5	54.5	31	9.5	10:1, 12:1, 15:1, 18:1, 20:1, 24:1, 25:1, 30:1, 36:1	0-10,0-12,0-15, 0-18,0-20,0-24, 0-25,0-30,0-36
SK80R □□□□	SK80	81.5	78.5	37	11.5	10:1, 12:1, 15:1, 18:1, 20:1, 24:1, 25:1, 30:1, 36:1	0-10,0-12,0-15, 0-18,0-20,0-24, 0-25,0-30,0-36
SK100 R □□□□	SK100	107	100	36	15	45:1	0-45

Code

Description

Ratio

Dial scale(norm)

SK60 R □□□□

SK60

57.5

54.5

9.5

10:1, 12:1, 15:1,

18:1, 20:1, 24:1,

25:1, 30:1, 36:1
