SK19

Position indicators

Hollow shaft max with Ø 20 mm Counter with 5 digits and fine reading Detent as an option Magnifying function for good readability Stainless-steel driving shaft as an option Axial seal, dustproof and splash-proof Digital indicators are used to adjust and directly read a motion (or an angle) obtained by a drive shaft rotation by the means of a screw.

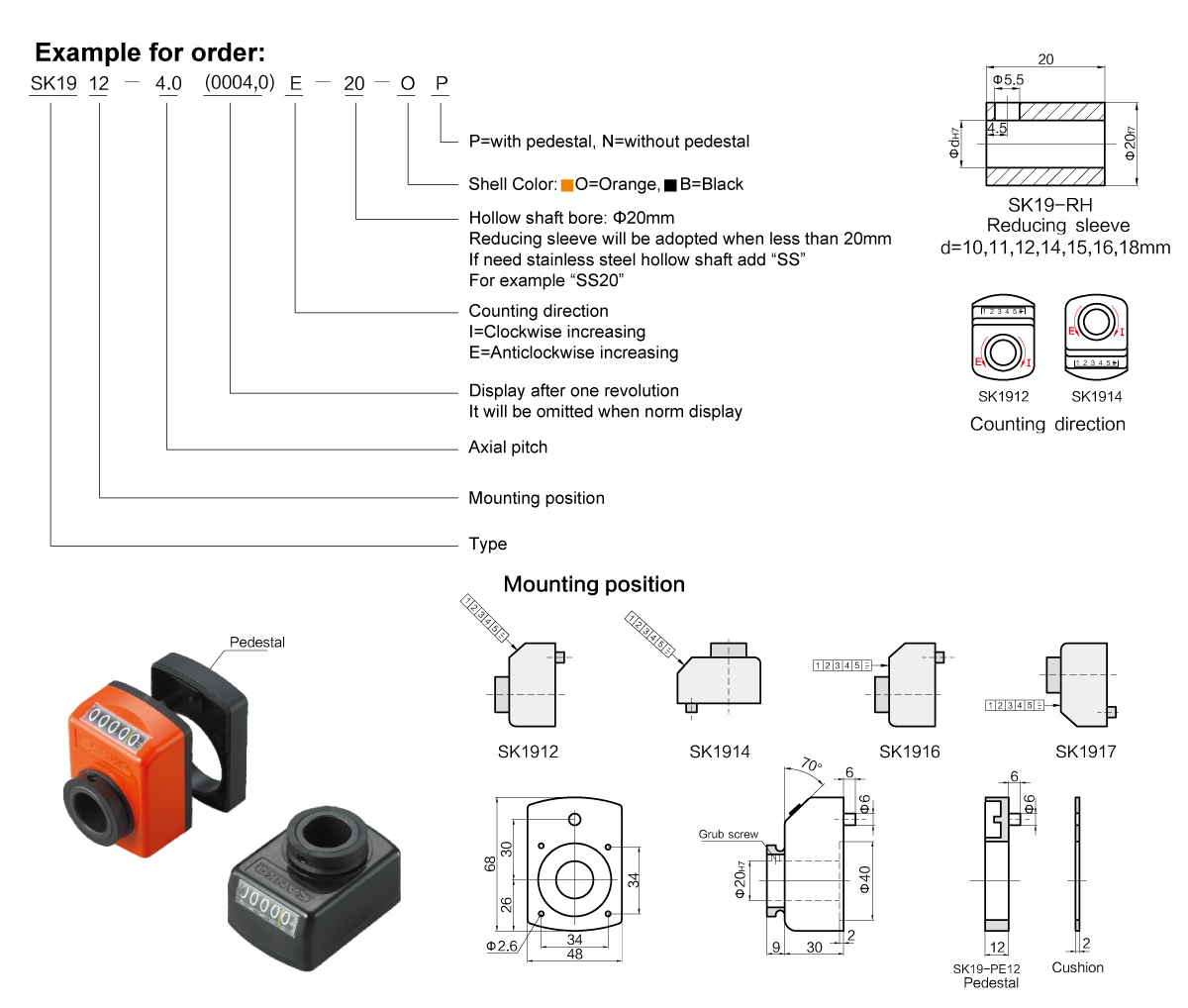

SK19 Position indicators(pic1)

Axial pitch	Display after one revolution			Max speed(r/m)
1.0mm	Norm 0001,0≡	Or 000,10≡	Or 00010≡	1500
1.25mm	Norm 0001,2/5	Or 000,12/5	Or 00012/5	1200
1.5mm	Norm 0001,5≡	Or 000,15≡	Or 00015≡	1000
1.6mm	Norm 0001,6≡	Or 000,16≡	Or 00016≡	1000
2.0mm	Norm 0002,0≡	Or 000,20≡	Or 00020≡	750
2.5mm	Norm 0002,5≡	Or 000,25≡	Or 00025≡	600
3.0mm	Norm 0003,0≡	Or 000,30≡	Or 00030≡	500
3.6mm	Norm 0003,6≡	Or 000,36≡	Or 00036≡	500
4.0mm	Norm 0004,0≡	Or 000,40≡	Or 00040≡	450
5.0mm	Norm 0005,0≡	Or 000,50≡	Or 00050≡	300
6.0mm	Norm 0006,0≡	Or 000,60≡	Or 00060≡	300
8.0mm	Norm 0008,0≡	Or 000,80≡	Or 00080≡	250
10.0mm	Norm 0010,0≡	Or 001,00≡	Or 00100≡	150
