SK04

Position indicators

Hollow shaft max with Ø 14 mm Counter with 4 digits and fine reading Detent as an option Magnifying function for good readability Stainless-steel driving shaft as an option Axial seal, dustproof and splash-proof Applications in "Photogallery": Pharma & Chemical industry; regulation systems; metal-working and welding machines; paper-working machines; trimming and beading machines.

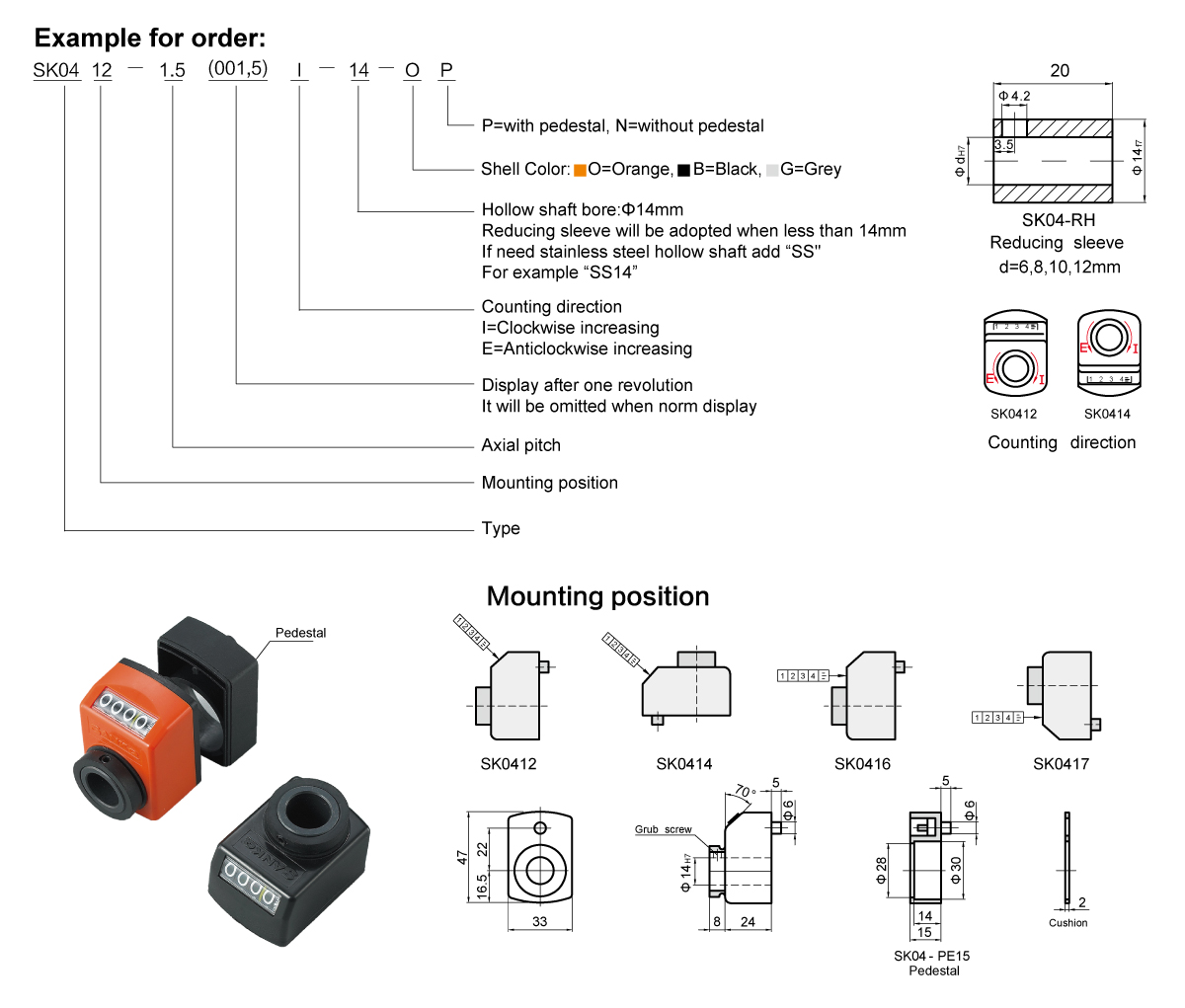

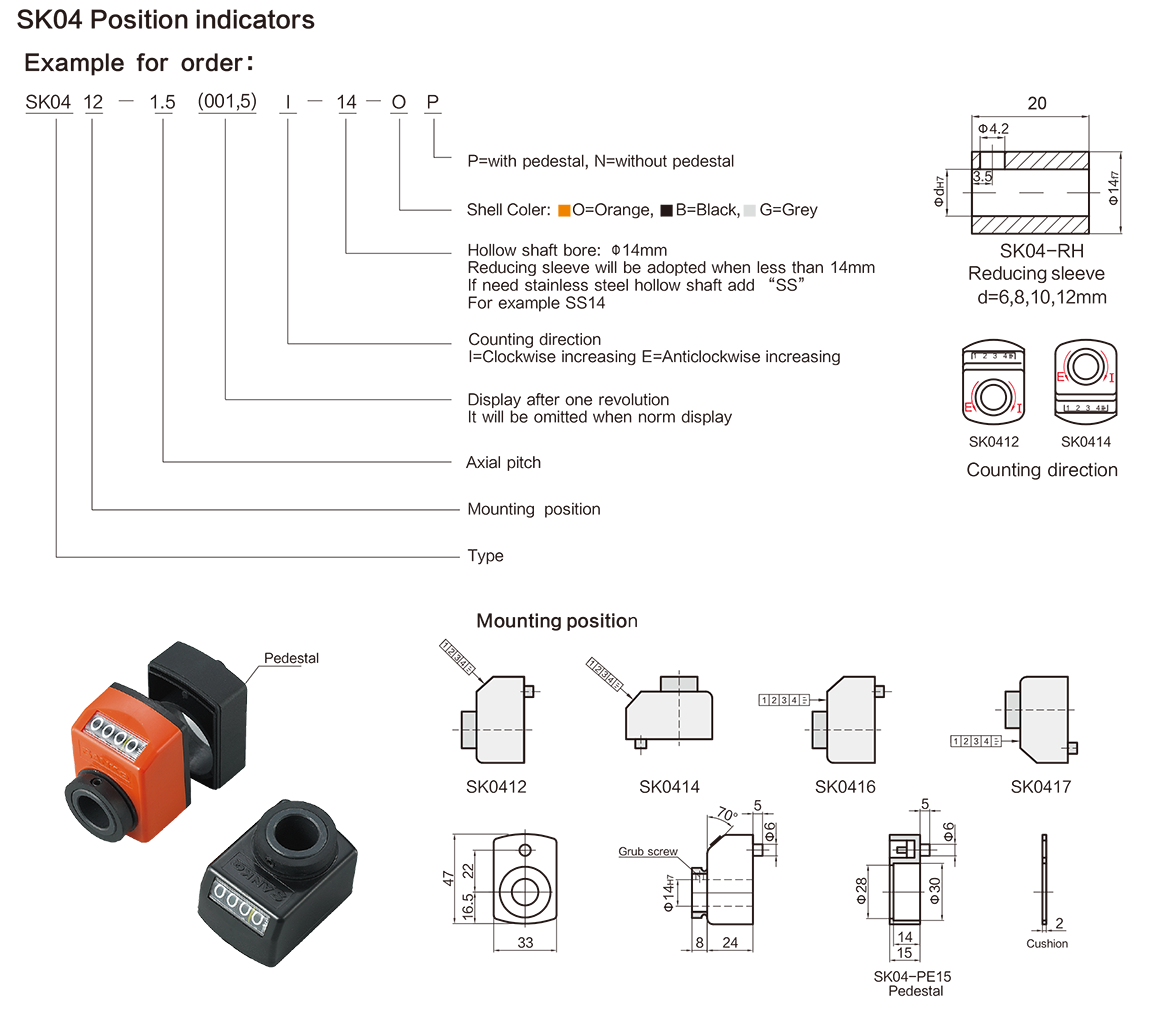

SK04 Position indicators(pic1)

Axial pitch	Display after one revolution			Max speed(r/m)
1.0mm	Norm 001,0≡	Or 00,10≡	Or 0010≡	1500
1.25mm	Norm 001,2/5≡	Or 00,12/5	Or 0012/5	1200
1.5mm	Norm 001,5≡	Or 00,15≡	Or 0015≡	1000
1.75mm	Norm 001,7/5≡	Or 00,17/5	Or 0017/5	850
2.0mm	Norm 002,0≡	Or 00,20≡	Or 0020≡	750
2.5mm	Norm 002,5≡	Or 00,25≡	Or 0025≡	600
3.0mm	Norm 003,0≡	Or 00,30≡	Or 0030≡	500
4.0mm	Norm 004,0≡	Or 00,40≡	Or 0040≡	375
5.0mm	Norm 005,0≡	Or 00,50≡	Or 0050≡	300
6.0mm	Norm 006,0≡	Or 00,60≡	Or 0060≡	250
8.0mm	Norm 008,0≡	Or 00,80≡	Or 0080≡	180
10.0mm	Norm 010,0≡	Or 01,00≡	Or 0100≡	150
