SK7012

Adjustable handles

Product specifications are comprehensive, quality is superior, and non-standard customization is supported.
Brand：SANKQ
Production Base：WENZHOU ZHEJIANG CHINA
Tel：86+577-62992003

Code

SK7012

主要材质

锌合金的手柄，碳钢的螺钉、弹簧、滑套

表面处理

手柄喷塑，弹簧电镀，螺钉与滑套黑色氧化

柄体颜色

"B"黑色,"O"橙色，其他颜色需要定制

产品优势

优质原材料，齿形结构，坚固耐用，尺寸标准

订购说明

提供代号或者规格

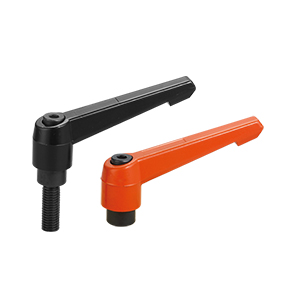

SK7012 Adjustable handles(pic1)

代号Code	规格Description	R	d	l	h	H	D1	单重(g)
7012320□	50×AM5	50	M5		9	35	Ф9.8	32.0
7012321□	50×M5×16	50	M5	16		35	Ф9.8	35.0
7012322□	50×M5×20	50	M5	20		35	Ф9.8	35.5
7012323□	50×M5×25	50	M5	25		35	Ф9.8	36.0
7012330□	50×AM6	50	M6		9	35	Ф9.8	31.0
7012331□	50×M6×16	50	M6	16		35	Ф9.8	36.0
7012332□	50×M6×20	50	M6	20		35	Ф9.8	36.5
7012333□	50×M6×25	50	M6	25		35	Ф9.8	37.5
7012440□	63×AM8	63	M8		12	44	Ф12.9	56.0
7012442□	63×M8×20	63	M8	20		44	Ф12.9	66.2
7012443□	63×M8×25	63	M8	25		44	Ф12.9	68.5
7012444□	63×M8×32	63	M8	32		44	Ф12.9	70.5
7012446□	63×M8×40	63	M8	40		44	Ф12.9	72.5
7012447□	63×M8×50	63	M8	50		44	Ф12.9	75.6
7012550□	80×AM10	80	M10		15	54	Ф16.1	96.0
7012552□	80×M10×20	80	M10	20		54	Ф16.1	114.6
7012553□	80×M10×25	80	M10	25		54	Ф16.1	117.2
7012554□	80×M10×32	80	M10	32		54	Ф16.1	120.4
7012556□	80×M10×40	80	M10	40		54	Ф16.1	124.0
7012557□	80×M10×50	80	M10	50		54	Ф16.1	129.6
7012660□	95×AM12	95	M12		17	61	Ф19.2	136.4
7012663□	95×M12×25	95	M12	25		61	Ф19.2	170.5
7012664□	95×M12×32	95	M12	32		61	Ф19.2	175.5
7012666□	95×M12×40	95	M12	40		61	Ф19.2	179.5
7012667□	95×M12×50	95	M12	50		61	Ф19.2	187.5
7012668□	95×M12×63	95	M12	63		61	Ф19.2	196.5
7012880□	114×AM16	114	M16		20	69	Ф22.3	202.5
7012886□	114×M16×40	114	M16	40		69	Ф22.3	290.0
7012887□	114×M16×50	114	M16	50		69	Ф22.3	303.0
7012888□	114×M16×63	114	M16	63		69	Ф22.3	317.8
